6 models

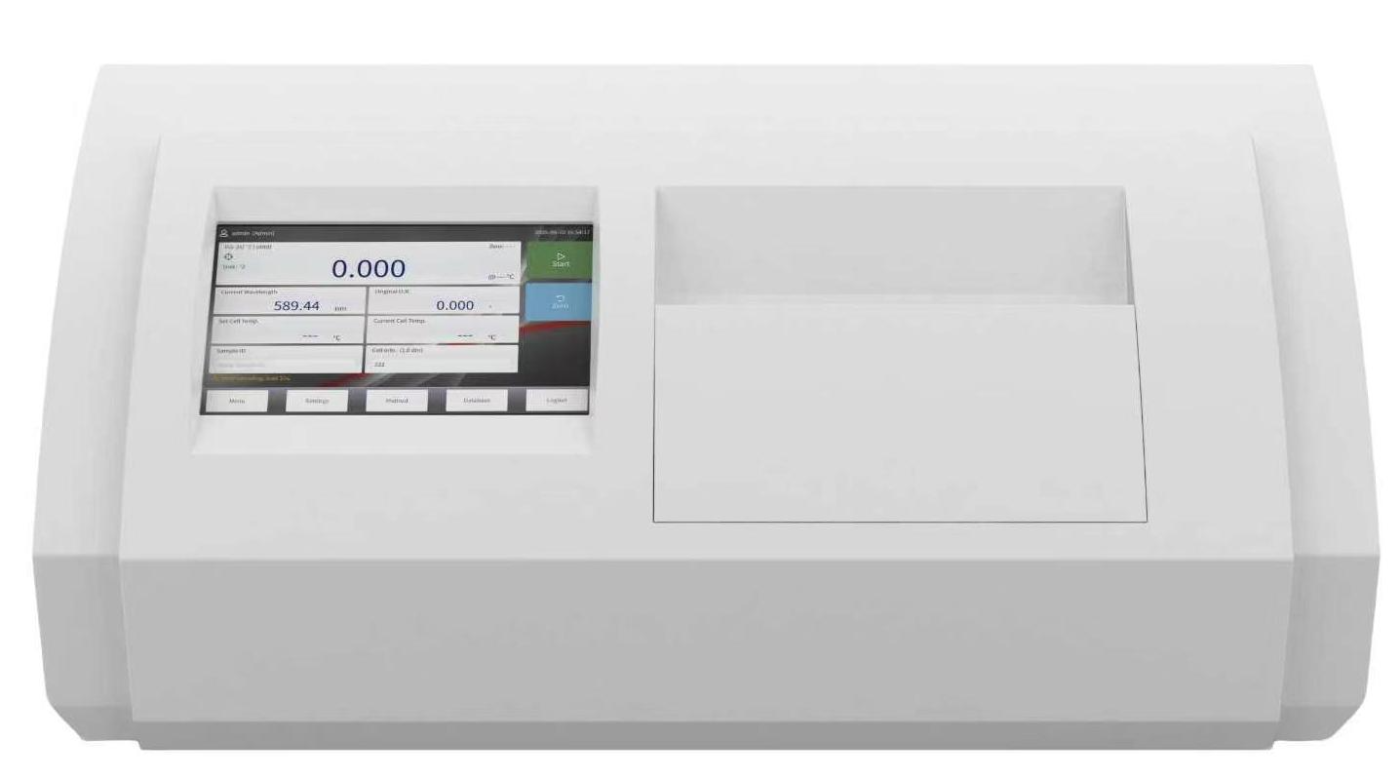

Polarimeter Series

Name: Polarimeter Series
Brand: YOKON

Optical rotation, specific rotation, concentration and sugar content from 0. 001° resolution, with Peltier temperature control from 10 °C to 50 °C.

Documentation

Datasheets and manuals are issued per model and revision. Ask for the documents that match the configuration you are considering.

See linked documents

Category Polarimeter In production

1-inch high-definition full-colour touchscreen
LED cold light source rated for more than 100,000 hours, no sodium or tungsten lamp
Built-in Peltier temperature control, 10–50 °C, for temperature-sensitive samples
Optical rotation ±89.9°, sugar scale up to ±259 °Z
Audit trail, user rights management and 21 CFR Part 11 compliance on the TGW models
Sample cells from 2.5 mm to 200 mm, sample volume from 0.05 mL to 20 mL

Polarimeter Series core specifications
Light Source	LED cold light source, service life over 100,000 hours. Standard equipped with 589.44 nm (in vacuum) / 589.3 nm (in air).
Temperature Range	0-100°C
Temperature Accuracy	±0.1°C

Request a quotation Documents

Send your sample type and method, and we will confirm the configuration and current lead time.

Ask about this model

sales@yoke-fac.com

Model comparison

Polarimeter Series range at a glance

Full specifications for every model in the series, side by side. Tell us the sample type and throughput you need and we will point to the closest configuration.

Compare model

Polarimeter Series — 6 models
Parameter	WZZ-2S	TGW-2	TGW-3	TGW-5	TGW-6	TGW-8
Measuring Range	optical rotation: ±89.9°	Optical Rotation: ±89.9°, Sugar Content: ±259 °Z	Optical Rotation: ±89.9°, Sugar Content: ±259 °Z	Optical Rotation: ±89.9°, Sugar Content: ±259 °Z	Optical Rotation: ±89.9°, Sugar Content: ±259 °Z	Optical Rotation: ±89.9°, Sugar Content: ±259 °Z
Resolution	0.01°/ 0.001°Z	0.001°/0.0001°Z	0.001°/0.0001°Z	0.001°/0.0001°Z	0.001°/0.0001°Z	0.001°/0.0001°Z
Accuracy	±0.01°	±0.01°	±0.01°	±0.008°	±0.005°	±0.002°
Repeatability	≤0.005°	≤0.005°	≤0.005°	≤0.003°	≤0.002°	≤0.001°
Measuring Mode	optical rotation	optical rotation, specific rotation, concentration, sugar content, user-defined	optical rotation, specific rotation, concentration, sugar content, user-defined	optical rotation, specific rotation, concentration, sugar content, user-defined	optical rotation, specific rotation, concentration, sugar content, user-defined	optical rotation, specific rotation, concentration, sugar content, user-defined
Temperature Control Mode	—	Peltier temperature control	Peltier temperature control	Peltier temperature control	Peltier temperature control	Peltier temperature control
Temperature Control Range	—	10-50°C	10-50°C	10-50°C	10-50°C	10-50°C
Temperature Control Accuracy	—	±0.1°C	±0.1°C	±0.1°C	±0.1°C	±0.1°C
Method Capacity	10	50	100	100	100	100
Saved Result Capacity	20	500	5000	5000	5000	5000
User Capacity	1 (No user management)	1 (No user management)	500	500	500	500
Compliant Standards	—	—	Meet various measurement standards and pharmacopoeias, 21 CFR.	Meet various measurement standards and pharmacopoeias, 21 CFR.	Meet various measurement standards and pharmacopoeias, 21 CFR.	Meet various measurement standards and pharmacopoeias, 21 CFR.
Operation Log Capacity	—	—	20000	20000	20000	20000
Standard Sample Cell	100mm Standard Type	100mm Standard Type	100mm Standard Type	100mm Standard Type	100mm Standard Type, 100 mm corrosion-resistant temperature control type	100mm Standard Type, 100 mm corrosion-resistant temperature control type

Overview

What this instrument is designed to do, in plain terms.

The Polarimeter Series covers 6 models, WZZ-2S, TGW-2, TGW-3, TGW-5, TGW-6, TGW-8. Every model shares the LED light source, the 10.1-inch touchscreen and the 589. 3 nm measuring wavelength; the table below lists what differs across the range.

10.1-inch high-definition full-colour touchscreen
LED cold light source rated for more than 100,000 hours, no sodium or tungsten lamp
Built-in Peltier temperature control, 10–50 °C, for temperature-sensitive samples
Optical rotation ±89. 9°, sugar scale up to ±259 °Z
Audit trail, user rights management and 21 CFR Part 11 compliance on the TGW models
Sample cells from 2. 5 mm to 200 mm, sample volume from 0. 05 mL to 20 mL
