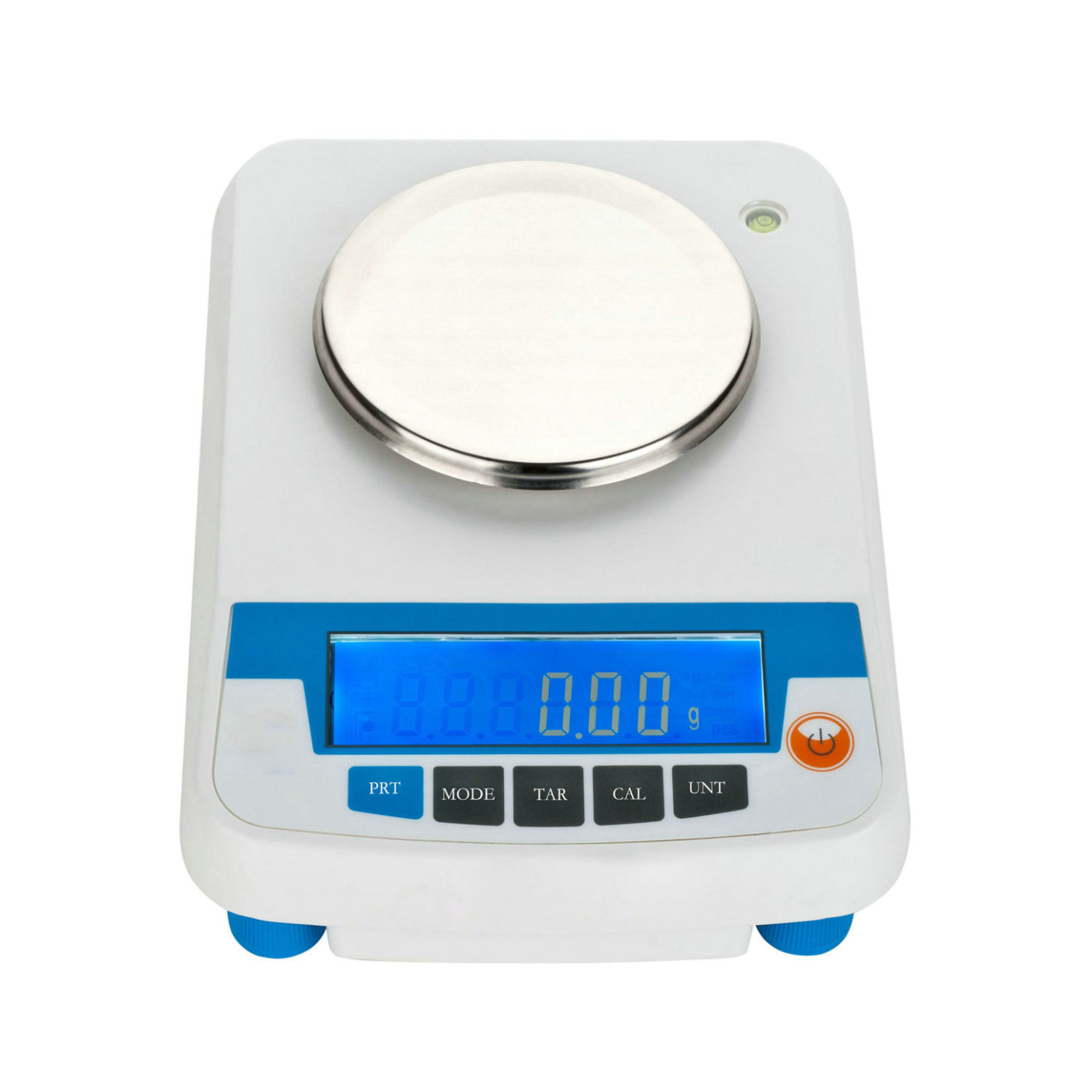

YP Series Electronic Balance
Functions: weighing, parts counting, percent weighing.
Documentation
Datasheets and manuals are issued per model and revision. Ask for the documents that match the configuration you are considering.
See linked documents- Functions: weighing, parts counting, percent weighing.
| Weighing Range | 0~100g |
|---|---|
| Readability | 10mg |
| Pan Size | Φ130mm |
Send your sample type and method, and we will confirm the configuration and current lead time.
Ask about this modelModel comparison
YP Series Electronic Balance range at a glance
Full specifications for every model in the series, side by side. Tell us the sample type and throughput you need and we will point to the closest configuration.
| Model | Weighing Range | Readability | Pan Size |
|---|---|---|---|
| YP1002 | 0~100g | 10mg | Φ130mm |
| YP2002 | 0~200g | 10mg | Φ130mm |
| YP3002 | 0~300g | 10mg | Φ130mm |
| YP4002 | 0~400g | 10mg | Φ130mm |
| YP5002 | 0~500g | 10mg | Φ130mm |
| YP6002 | 0~600g | 10mg | Φ130mm |
| YP10002 | 0~1000g | 10mg | Φ130mm |
| YP20002 | 0~2000g | 10mg | Φ130mm |
| YP30002 | 0~3000g | 10mg | Φ130mm |
| YP2001 | 0~200g | 100mg | Φ130mm |
| YP4001 | 0~400g | 100mg | Φ130mm |
| YP6001 | 0~600g | 100mg | Φ130mm |
| YP8001 | 0~800g | 100mg | Φ130mm |
| YP10001 | 0~1000g | 100mg | Φ130mm |
| YP20001 | 0~2000g | 100mg | Φ165mm |
| YP30001 | 0~3000g | 100mg | Φ165mm |
| YP40001 | 0~4000g | 100mg | Φ165mm |
| YP50001 | 0~5000g | 100mg | Φ165mm |
| YP60001 | 0~6000g | 100mg | Φ165mm |
| YP1000 | 0~1000g | 1g | Φ165mm |
| YP2000 | 0~2000g | 1g | Φ165mm |
| YP3000 | 0~3000g | 1g | Φ165mm |
| YP5000 | 0-5000g | 1g | Φ165mm |
| YP6000 | 0-6000g | 1g | Φ165mm |
| YP80001 | 0~8000g | 100mg | 255*190mm |
| YP100001 | 0-10000g | 0.1g | 255*190mm |
| YP200001 | 0-20000g | 0.1g | 255*190mm |
| YP10000 | 0-10000g | 1g | 255*190mm |
| YP15000 | 0-15000g | 1g | 255*190mm |
| YP20000 | 0-20000g | 1g | 255*190mm |
| YP30000 | 0-30000g | 1g | 255*190mm |
Overview
What this instrument is designed to do, in plain terms.
The YP Series Electronic Balance covers 31 models, YP1002 to YP30000. The comparison table lists the values that differ across the range.
- Functions: weighing, parts counting, percent weighing.
Accessaries
Confirm these items before the final quotation. Accessaries are listed only where the manufacturer offers them.
Standard Accessaries
- Calibration Weight (optional)
- Adapter
- Manual
- Dust cover
Optional Accessaries
No Optional Accessaries are published for this model. Confirm availability with our team.
Specifications can depend on the selected configuration. Confirm the current datasheet, accessories and software version before purchase.
