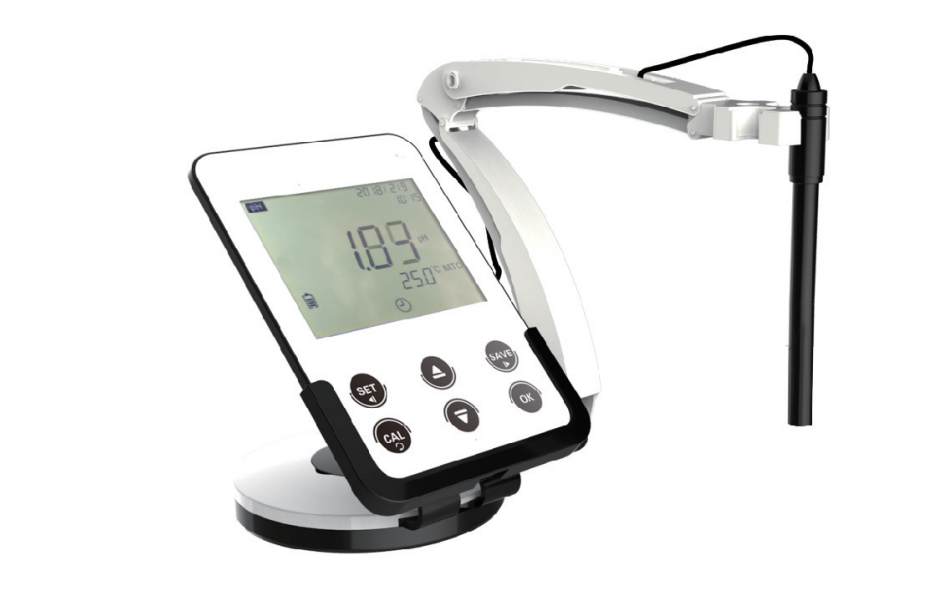

P9 Series pH/Conductivity/DO Meters
5-inch LCD screen with 150° viewing angle for clear reading out of 5 meters.
Documentation
Datasheets and manuals are issued per model and revision. Ask for the documents that match the configuration you are considering.
See linked documents- Built-in microprocessor chip has Intelligent functions such as automatic calibration, ATC, data storage, clock display, USB output, function settings, automatic power-off and low voltage alarm, etc.
- Two USB interfaces for PC connection, battery charging, and data transfer.
- 5mm electrode interface makes it very easy for electrode connection.
- Automatic recognition of different electrodes.
- Automatic recognition of 15 buffers with three kinds of options: Europe & USA, NIST and China.
| Other | Display 5-Inch white backlit LCD screen; Data storage 200 sets; Power DC 5V/1A; Communication connector Micro USB & Standard USB; Dimension/N.W. 180 x 130 x 14mm/280g |
|---|---|
| Working Condition | Environment Temp. 5 ~ 35 ℃; Environmental ≤85%; IP Grade IP54 |
Send your sample type and method, and we will confirm the configuration and current lead time.
Ask about this modelOverview
What this instrument is designed to do, in plain terms.
The P9 Series pH/Conductivity/DO Meters covers 4 models, P911 to P914. The comparison table lists the values that differ across the range.
- 5-inch LCD screen with 150° viewing angle for clear reading out of 5 meters.
- Built-in microprocessor chip has Intelligent functions such as automatic calibration, ATC, data storage, clock display, USB output, function settings, automatic power-off and low voltage alarm, etc.
- Two USB interfaces for PC connection, battery charging, and data transfer.
- 3. 5mm electrode interface makes it very easy for electrode connection.
- Automatic recognition of different electrodes. The electrode with built-in chip can automatically store and retrieve calibration data after connecting with meter.
- Automatic recognition of 15 buffers with three kinds of options: Europe & USA, NIST and China. Support 1, 2, 3 point calibration.
- Can store 200 sets of data including readings, GLP data, date and time.
- Rechargeable battery can last for 30 hours. Auto power off when no operation in 10 minutes.
- Automatic recognition of 8 calibration solutions with two standards of options: Europe & USA and China.
- Automatic recognition of buffers & calibration solutions with three kinds of options: Europe & USA, NIST and China. Support 1, 2, 3 point calibration.
- Polarographic DO electrode, short polarization time (3-5 minutes).
Accessaries
Confirm these items before the final quotation. Accessaries are listed only where the manufacturer offers them.
Standard Accessaries
- pH electrode
- Temperature probe
- Buffer solution
- Power adapter
- Manual
- Cond. electrode (K=1)
- pH buffer solution
- DO electrode
- DO filling solution
Optional Accessaries
No Optional Accessaries are published for this model. Confirm availability with our team.
Specifications can depend on the selected configuration. Confirm the current datasheet, accessories and software version before purchase.
