KE Series

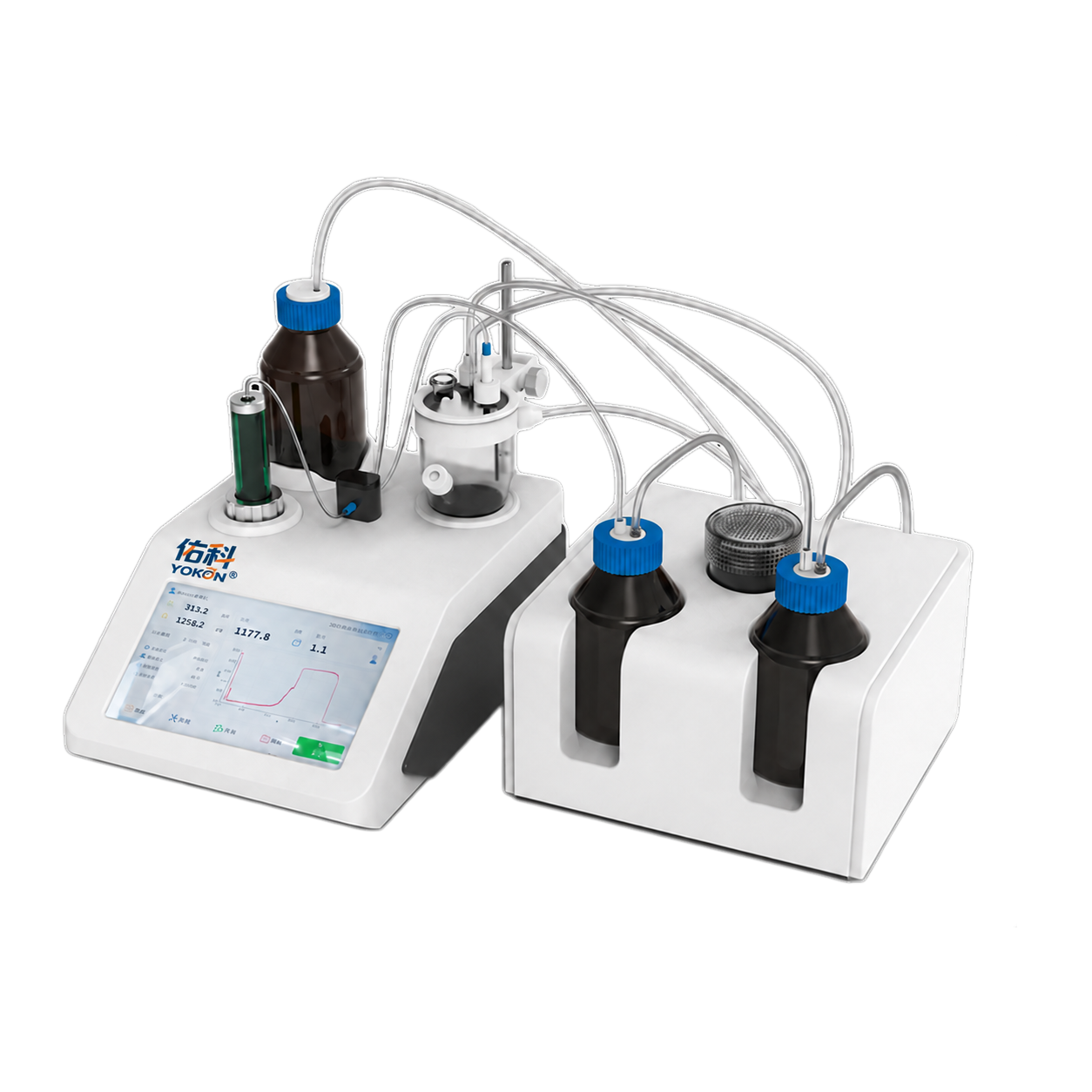

KE-01 Karl Fischer Volumetric Titrator

Name: KE-01 Karl Fischer Volumetric Titrator
Brand: YOKON
SKU: KE-01

Volumetric Karl Fischer titrator measuring 0. 1-250 mg of water with 0. 1 mg resolution, reporting results in mg, mg/L, percent and ppm.

Documentation

Datasheets and manuals are issued per model and revision. Ask for the documents that match the configuration you are considering.

See linked documents

Model KE-01 Category Potentiometric Titrator In production

10-inch color touchscreen, direct concentration readout, real-time display of titration curves and measurement results.
The titration modes include pre-titration, automatic titration, manual titration, constant titration, and titer titration.
Functions include automatic endpoint determination, automatic recording/storage/printing of data, generating PDF/Excel reports, etc.
The built-in high-precision burette ensures stable liquid flow rate, accurate dispensing volume, strong anti-interference capability, direct concentration readout, and precise test results.
Adopts a fully enclosed test chamber design, utilizing a specially designed silicone sealing ring to achieve a seamless connection between the reaction vessel and the titration and drainage systems…

KE-01 core specifications
Measurement Range	0.1~250mg
Resolution	0.1mg
Measurement Result	mg, mg/L, %, ppm
Polarization Current	1μA±0.2μA, 50μA±10μA
Indication Error	≤5%
Repeatability	≤0.5%
Accounts	100 pcs
Methods	100 sets
Data Storage	10000 sets
Output	USB port for data export
PC Software	Not available
Printing	Wired Dot matrix printer and Bluetooth thermal printer are optional

Request a quotation Documents

Send your sample type and method, and we will confirm the configuration and current lead time.

Ask about this model

sales@yoke-fac.com

Overview

What this instrument is designed to do, in plain terms.

The split-type design effectively reduces signal/electromagnetic interference, improving measurement accuracy.
10-inch color touchscreen, direct concentration readout, real-time display of titration curves and measurement results.
The titration modes include pre-titration, automatic titration, manual titration, constant titration, and titer titration. It can eliminate background interference such as residual water in the solvent and water adsorbed on the cell walls, and can also calibrate the reagent concentration to ensure the accuracy of the titration results.
Functions include automatic endpoint determination, automatic recording/storage/printing of data, generating PDF/Excel reports, etc.
The built-in high-precision burette ensures stable liquid flow rate, accurate dispensing volume, strong anti-interference capability, direct concentration readout, and precise test results.
Adopts a fully enclosed test chamber design, utilizing a specially designed silicone sealing ring to achieve a seamless connection between the reaction vessel and the titration and drainage systems, creating an independent, sealed space. The entire titration process (liquid addition, reaction, and drainage) is completed in a sealed environment, preventing external moisture and impurities from entering and avoiding environmental interference, making it particularly suitable for trace moisture detection. Simultaneously, it prevents the leakage of volatile reagents, reducing losses and ensuring operational safety, thus guaranteeing accurate, safe, and efficient testing.
