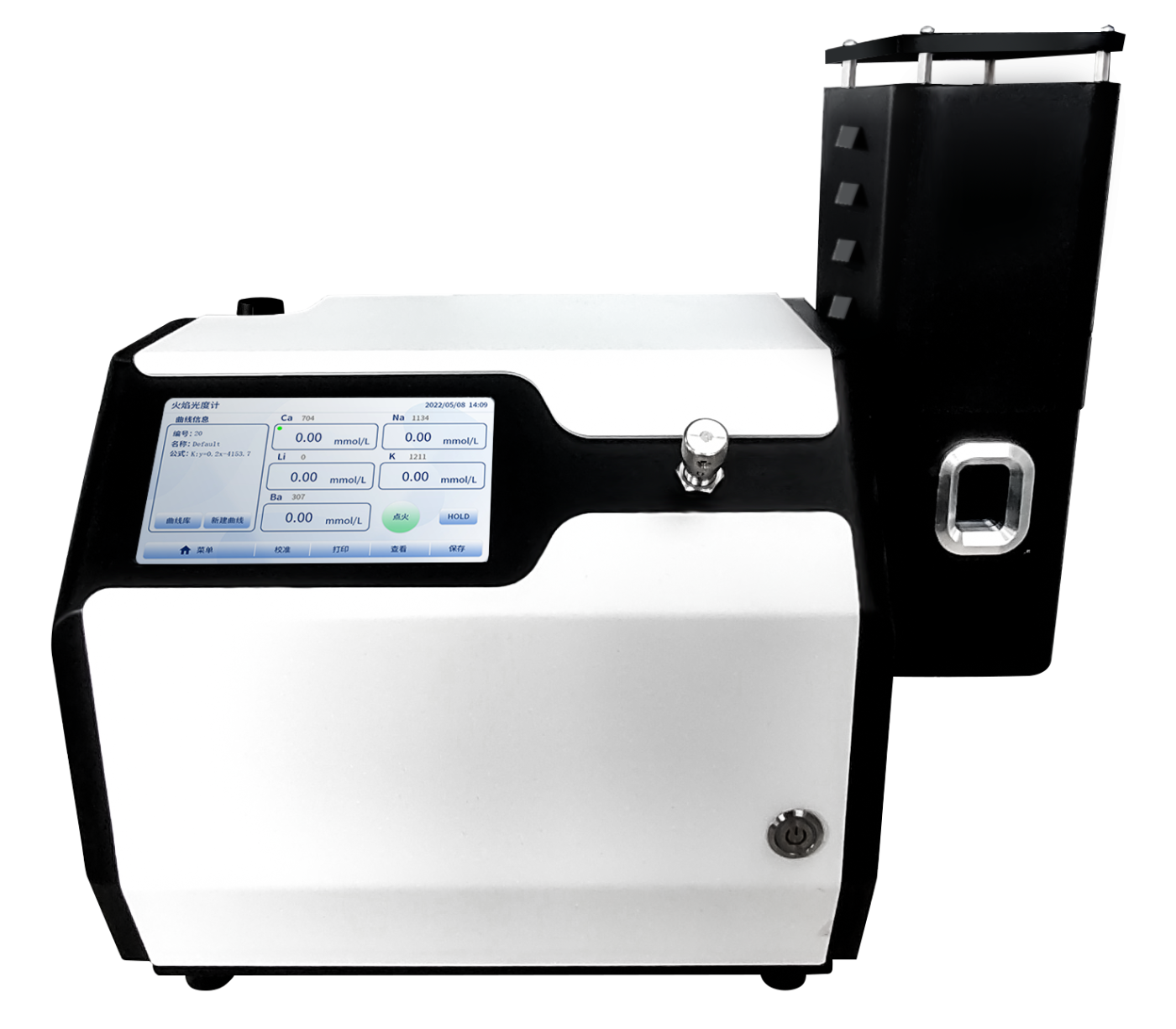

FP Series Flame Photometer
Direct reading of K, Na, Li, Ca, Ba concentration
Documentation
Datasheets and manuals are issued per model and revision. Ask for the documents that match the configuration you are considering.
See linked documents| Display | 7-inch color touch screen |
|---|---|
| Display Results | Concentration value/Energy |
| Reading Range | 0.000~999.9/0~65535 |
Send your sample type and method, and we will confirm the configuration and current lead time.
Ask about this modelModel comparison
FP Series Flame Photometer range at a glance
Full specifications for every model in the series, side by side. Tell us the sample type and throughput you need and we will point to the closest configuration.
| Parameter | FP6450 | FP6440 | FP6432 | FP6431 | FP6430 | FP6410 | FP6400 |
|---|---|---|---|---|---|---|---|
| Display | 7-inch color touch screen | 7-inch color touch screen | 7-inch color touch screen | 7-inch color touch screen | 7-inch color touch screen | 7-inch color touch screen | 7-inch color touch screen |
| Display Results | Concentration value/Energy | Concentration value/Energy | Concentration value/Energy | Concentration value/Energy | Concentration value/Energy | Concentration value/Energy | Concentration value/Energy |
| Reading Range | 0.000~999.9/0~65535 | 0.000~999.9/0~65535 | 0.000~999.9/0~65535 | 0.000~999.9/0~65535 | 0.000~999.9/0~65535 | 0.000~999.9/0~65535 | 0.000~999.9/0~65535 |
| Testable | K, Na, Li, Ca, Ba | K, Na, Li, Ca | K, Na, Ba | K, Na, Ca | K, Na, Li | K, Na | K, Na |
| Channel Qty | 5 | 4 | 3 | 3 | 3 | 2 | 2 |
| Range ppm | 0-100; 0-160; 0-100; 0-1000; 0-3000 | 0-100; 0-160; 0-100; 0-1000; —— | 0-100; 0-160; ——; ——; 0-3000 | 0-100; 0-160; ——; 0-1000; —— | 0-100; 0-160; 0-100; ——; —— | 0-100; 0-160; ——; ——; —— | 0-100; 0-160; ——; ——; —— |
| Detection Limit ppm | 0.01; 0.1; 2; 6 | 0.01; ≤0.015; 2; —— | 0.01; ——; ——; 6 | 0.01; ——; 2; —— | 0.01; ≤0.015; ——; —— | 0.01; ——; ——; —— | 0.01; ——; ——; —— |
| Linear Error | 0.195; 0.69; 0.15; 3; 9 | 0.195; 0.69; 0.15; 3; —— | 0.195; 0.69; ——; ——; 9 | 0.195; 0.69; ——; 3; —— | 0.195; 0.69; 0.15; ——; —— | 0.195; 0.69; ——; ——; —— | 0.195; 0.69; ——; ——; —— |
| Response Time | <8S | <8S | <8S | <8S | <8S | <8S | <8S |
| Sample Uptake | <6ml/min | <6ml/min | <6ml/min | <6ml/min | <6ml/min | <6ml/min | <6ml/min |
| Stability | <3% drift over 15s when continuous sampling | <3% drift over 15s when continuous sampling | <3% drift over 15s when continuous sampling | <3% drift over 15s when continuous sampling | <3% drift over 15s when continuous sampling | <3% drift over 15s when continuous sampling | <3% drift over 15s when continuous sampling |
| Reproducibility | <3% coefficient of variation for 7 consecutive samples | <3% coefficient of variation for 7 consecutive samples | <3% coefficient of variation for 7 consecutive samples | <3% coefficient of variation for 7 consecutive samples | <3% coefficient of variation for 7 consecutive samples | <3% coefficient of variation for 7 consecutive samples | <3% coefficient of variation for 7 consecutive samples |
| Bluetooth Printer | Yes | Yes | Yes | Yes | Yes | Yes | No |
| Output | USB port | USB port | USB port | USB port | USB port | USB port | USB port |
| Power | AC 220V/50Hz or AC 110V/60Hz | AC 220V/50Hz or AC 110V/60Hz | AC 220V/50Hz or AC 110V/60Hz | AC 220V/50Hz or AC 110V/60Hz | AC 220V/50Hz or AC 110V/60Hz | AC 220V/50Hz or AC 110V/60Hz | AC 220V/50Hz or AC 110V/60Hz |
Overview
What this instrument is designed to do, in plain terms.
The FP Series Flame Photometer covers 7 models, FP6450 to FP6400. The comparison table lists the values that differ across the range.
- 7-inch color touchscreen
- Direct reading of K, Na, Li, Ca, Ba concentration
- Flameout protection device
- Automatic calculation of correlation coefficients
Accessaries
Confirm these items before the final quotation. Accessaries are listed only where the manufacturer offers them.
Standard Accessaries
Ask for an itemised quotation that separates standard items from options.
Optional Accessaries
No Optional Accessaries are published for this model. Confirm availability with our team.
Specifications can depend on the selected configuration. Confirm the current datasheet, accessories and software version before purchase.
