Education & Research
Instrument selection for teaching laboratories and research groups: absorbance, electrochemistry, weighing and microvolume work.
8 measurement tasks · 7 instruments · 4 notes
Explore workflowF Series

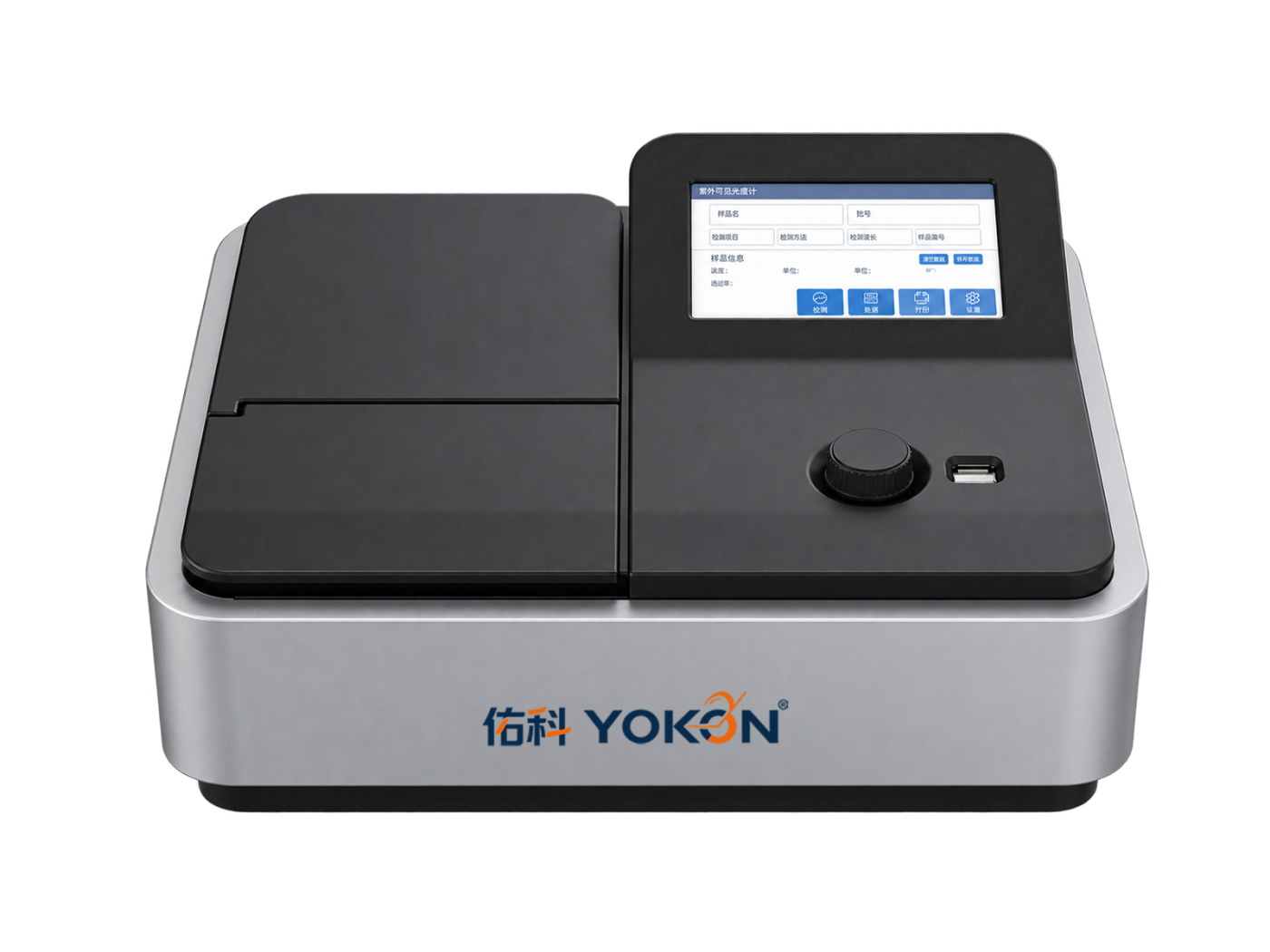

F950 Fluorescence Spectrophotometer
Equipped with precision wavelength adjustment knob for smooth operation and clear graduations.
Documentation
Datasheets and manuals are issued per model and revision. Ask for the documents that match the configuration you are considering.
See linked documents- No expensive stepper motor drive system is required, greatly cutting overall equipment cost.
- The optical path features a compact structure with minimal moving parts for low failure rate.
- Optional excitation LED sources: 365nm, 376nm, 392nm, 405nm.
| Detection Sensitivity | Quinine sulfate solution detection: 1×10⁻⁹ g/mL |
|---|---|
| Excitation Wavelength Range | 360–600nm (LED) |
| Emission Wavelength Range | 360–650nm (extendable to 900 nm) |
| Emission Bandwidth | 12nm |
| Emission Wavelength Accuracy | ±2.0nm |
| Emission Wavelength Repeatability | ≤1.0nm |
| Peak Intensity Repeatability | ≤1.5% |
| Measurement Linearity | Correlation coefficient ≥ 0.995 |
| Fluorescence Detector | Original Hamamatsu photomultiplier tube |
| Data Transmission Mode | RS232 serial port, USB-B, USB-A |
| PC Software | Optional (optional 21 CFR compliant software) |
| Power | 220V/50HZ |
Send your sample type and method, and we will confirm the configuration and current lead time.
Ask about this modelOverview
What this instrument is designed to do, in plain terms.
- Equipped with precision wavelength adjustment knob for smooth operation and clear graduations. Wavelength readings are displayed on a large dial with excellent indication repeatability.
- No expensive stepper motor drive system is required, greatly cutting overall equipment cost. It enables high-throughput batch sample quantification at fixed wavelengths with outstanding efficiency.
- The optical path features a compact structure with minimal moving parts for low failure rate. It adopts long-life cold LED light source and high-sensitivity photomultiplier tube.
- Optional excitation LED sources: 365nm, 376nm, 392nm, 405nm. Featuring exclusive positioning design for quick and easy replacement of excitation filters and light sources; no optical adjustment needed after replacement with optimized optical path maintained.
Accessaries
Confirm these items before the final quotation. Accessaries are listed only where the manufacturer offers them.
Standard Accessaries
Ask for an itemised quotation that separates standard items from options.
Optional Accessaries
- Excitation LED sources: 365 nm, 376 nm, 392 nm, 405 nm
- PC software
- 21 CFR compliant software
Specifications can depend on the selected configuration. Confirm the current datasheet, accessories and software version before purchase.
Applications for this instrument.
See how the model is positioned for real measurement tasks.
Let’s talk about your application
Find the right instrument for your application.
Share your sample, measurement requirements and preferred configuration.
