3 models

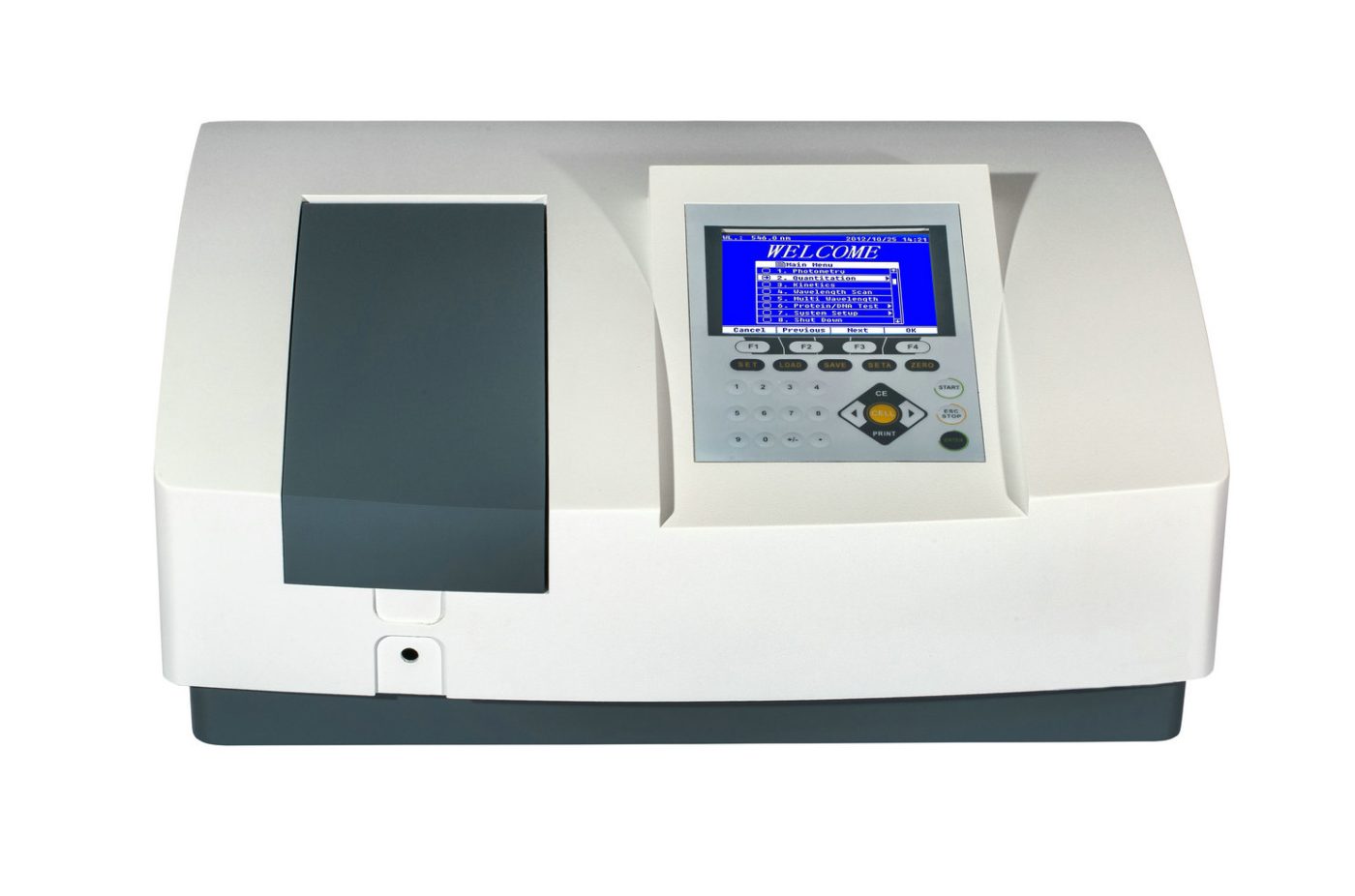

1900 Series Double Beam Spectrophotometer

Name: 1900 Series Double Beam Spectrophotometer
Brand: YOKON

Three double-beam spectrophotometers from UV1900 to UV1901S covering 190-1100 nm with 0. 1 nm wavelength repeatability and 0. 2 percent T photometric accuracy.

Documentation

Datasheets and manuals are issued per model and revision. Ask for the documents that match the configuration you are considering.

See linked documents

Category UV-Vis Spectrophotometer In production

1900 Series Double Beam Spectrophotometer core specifications
Optical System	Double Beam, Grating 1200 lines/mm
Wavelength Range	190-1100 nm
Wavelength Accuracy	±0.1nm@656.1nm, ±0.3nm@all

Request a quotation Documents

Send your sample type and method, and we will confirm the configuration and current lead time.

Ask about this model

sales@yoke-fac.com

Model comparison

1900 Series Double Beam Spectrophotometer range at a glance

Full specifications for every model in the series, side by side. Tell us the sample type and throughput you need and we will point to the closest configuration.

Compare model

1900 Series Double Beam Spectrophotometer — 3 models
Parameter	UV1900	UV1901	UV1901S
Optical System	Double Beam, Grating 1200 lines/mm	Double Beam, Grating 1200 lines/mm	Double Beam, Grating 1200 lines/mm
Wavelength Range	190-1100 nm	190-1100 nm	190-1100 nm
Spectral Bandwidth	2nm	1nm	0.5/1/2/4/5nm
Wavelength Accuracy	±0.1nm@656.1nm, ±0.3nm@all	±0.1nm@656.1nm, ±0.3nm@all	±0.1nm@656.1nm, ±0.3nm@all
Wavelength Repeatability	≤0.1nm	≤0.1nm	≤0.1nm
Photometric Accuracy	0.2%T(0~100%T), ±0.002A(0-0.5A), ±0.004A(0.5-1A)	0.2%T(0~100%T), ±0.002A(0-0.5A), ±0.004A(0.5-1A)	0.2%T(0~100%T), ±0.002A(0-0.5A), ±0.004A(0.5-1A)
Photometric Repeatability	≤0.15%T (0-100%T), 0.001A(0-0.5A), 0.002A(0.5-1A)	≤0.15%T (0-100%T), 0.001A(0-0.5A), 0.002A(0.5-1A)	≤0.15%T (0-100%T), 0.001A(0-0.5A), 0.002A(0.5-1A)
Photometric Range	0-200%T, -0.3~3A, 0-9999C	0-200%T, -0.3~3A, 0-9999C	0-200%T, -0.3~3A, 0-9999C
Stray Light	≤0.03%T@220nm, 360nm	≤0.03%T@220nm, 360nm	≤0.03%T@220nm, 360nm
Stability	±0.0005A/h@500nm	±0.0005A/h@500nm	±0.0005A/h@500nm
Baseline Flatness	±0.002A	±0.001A	±0.001A
Noise	0.0005A@500nm	0.0005A@500nm	0.0005A@500nm
Work Mode	T, A, C, E	T, A, C, E	T, A, C, E
Scanning Speed	Hi, Med, Low (Max. 3000nm/min)	Hi, Med, Low (Max. 3000nm/min)	Hi, Med, Low (Max. 3000nm/min)
Wavelength Setting	Auto	Auto	Auto
Display	320*240 LCD	320*240 LCD	320*240 LCD
Light Source	Deuterium & Tungsten lamp	Deuterium & Tungsten lamp	Deuterium & Tungsten lamp
Detector	Silicon Photodiode	Silicon Photodiode	Silicon Photodiode
Cuvette Holder	10mm manual 4-cell holder	10mm manual 4-cell holder	10mm manual 4-cell holder
Output	USB, RS232	USB, RS232	USB, RS232
Power	AC 110-220V 50-60Hz	AC 110-220V 50-60Hz	AC 110-220V 50-60Hz

Shaded labels mark the specifications that differ between models.

Overview

What this instrument is designed to do, in plain terms.

The 1900 Series Double Beam Spectrophotometer covers 3 models, UV1900 to UV1901S. The comparison table lists the values that differ across the range.

Large 320*240 dots highlighted LCD.
Functions include Photometric measurement, Quantitative measurement, Kinetics, Spectrum scan, DNA/Protein test, multi-wavelength test, etc.
In-house massive memory is capable of saving up to 1024M for test data & working curves.
Supports USB storage. The USB port can be used for data transfer and exporting to Excel for further processing, analysis and storage.
Socket-type deuterium and tungsten lamps support lamp switching without optical realignment, and the lamps are easy to replace.
Large sample chamber can accommodate 5-100mm cuvettes of all kinds.
Extensive accessories are optional, such as auto 8-cell holder, film holder, tube rack, peltier/sipper system, integrating sphere, reflection accessory, 21 CFR compliant software, etc.
