Education & Research
Instrument selection for teaching laboratories and research groups: absorbance, electrochemistry, weighing and microvolume work.
8 measurement tasks · 7 instruments · 4 notes
Explore workflow3 models

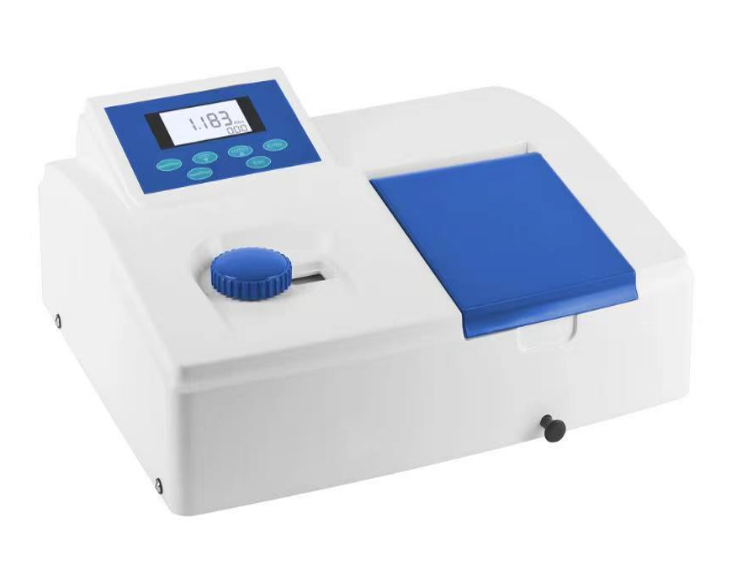

1200 Series Basic Spectrophotometer
A basic single-beam spectrophotometer range with a 1200 lines/mm grating, 2 nm wavelength accuracy and a 70 x 40 mm backlit LCD showing transmittance, absorbance and concentration.
Documentation
Datasheets and manuals are issued per model and revision. Ask for the documents that match the configuration you are considering.
See linked documents- Can make tests of Quantitative and Kinetics with optional PC software.
- Adjust 0%A and 100%T automatically.
- Store the measuring data and values of K and B.
- Large sample chamber can accommodate 5-100mm cuvettes of all kinds.
| Optical System | Single Beam, Grating 1200 lines/mm |
|---|---|
| Wavelength Accuracy | ±2nm |
| Wavelength Repeatability | ≤1nm |
Send your sample type and method, and we will confirm the configuration and current lead time.
Ask about this modelModel comparison
1200 Series Basic Spectrophotometer range at a glance
Full specifications for every model in the series, side by side. Tell us the sample type and throughput you need and we will point to the closest configuration.
| Parameter | V1200 | UV1200 | UV1200Pro |
|---|---|---|---|
| Optical System | Single Beam, Grating 1200 lines/mm | Single Beam, Grating 1200 lines/mm | Single Beam, Grating 1200 lines/mm |
| Wavelength Range | 320-1020nm | 190-1020nm | 190-1020nm |
| Spectral Bandwidth | 4nm | 4nm | 2nm |
| Wavelength Accuracy | ±2nm | ±2nm | ±2nm |
| Wavelength Repeatability | ≤1nm | ≤1nm | ≤1nm |
| Photometric Range | 0-200%T, -0.3-3.0A, 0-9999C | 0-200%T, -0.3-3.0A, 0-9999C | 0-200%T, -0.3-3.0A, 0-9999C |
| Photometric Accuracy | 0.5%T | 0.5%T | 0.5%T |
| Photometric Repeatability | 0.2%T | 0.2%T | 0.2%T |
| Stray light | ≤0.15%T@ 360nm | ≤0.15%T@ 360nm | ≤0.15%T@ 360nm |
| Stability | 0.002A@ 500nm | 0.002A@ 500nm | 0.002A@ 500nm |
| Wavelength Setting | Manual | Manual | Manual |
| Display | 70*40mm white backlit LCD | 70*40mm white backlit LCD | 70*40mm white backlit LCD |
| Light Source | Tungsten lamp | Deuterium & Tungsten lamp | Deuterium & Tungsten lamp |
| Detector | Silicon Photodiode | Silicon Photodiode | Silicon Photodiode |
| Cuvette Holder | 10mm manual 4-cell holder | 10mm manual 4-cell holder | 10mm manual 4-cell holder |
| Output | RS232 | RS232 | RS232 |
| Power | AC 110-220V 50-60Hz | AC 110-220V 50-60Hz | AC 110-220V 50-60Hz |
Shaded labels mark the specifications that differ between models.
Overview
What this instrument is designed to do, in plain terms.
The 1200 Series Basic Spectrophotometer covers 3 models, V1200 to UV1200Pro. The comparison table lists the values that differ across the range.
- 70* 40mm white backlit LCD screen can display T, A, C, K, B.
- Can make tests of Quantitative and Kinetics with optional PC software.
- Adjust 0%A and 100%T automatically.
- Store the measuring data and values of K and B.
- Large sample chamber can accommodate 5-100mm cuvettes of all kinds.
Accessaries
Confirm these items before the final quotation. Accessaries are listed only where the manufacturer offers them.
Standard Accessaries
- 10mm glass cuvette x 4
- 10mm quartz cuvette x 2 (UV)
- Power cord
- User's Manual
Optional Accessaries
- PC software
Specifications can depend on the selected configuration. Confirm the current datasheet, accessories and software version before purchase.
