10 models

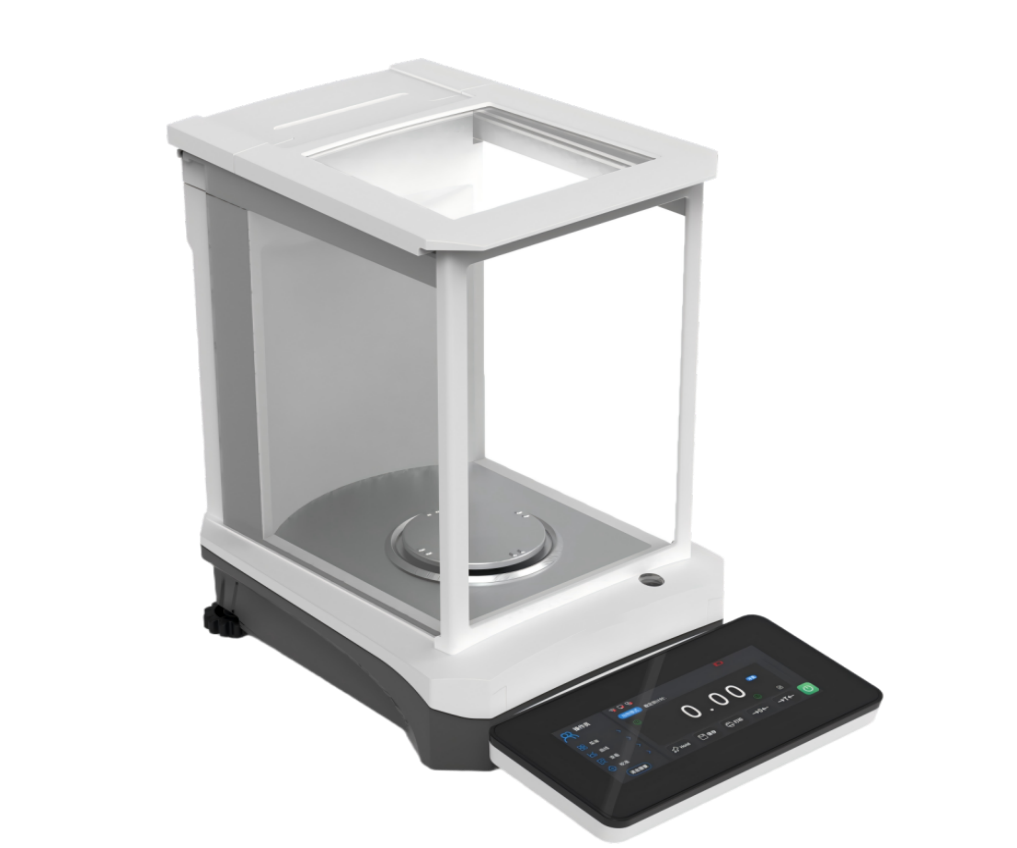

ST Series Balance
Equipped with an advanced 6.8-inch full-color LCD touchscreen, adopting a separate design for the display screen and the main unit.
Documentation
Datasheets and manuals are issued per model and revision. Ask for the documents that match the configuration you are considering.
See linked documents| Readability | e=1mg d=0.1mg |
|---|---|
| Stabilization Time | Optional in 2S or 4S |
| Maximum permissible error | ±0.5e 0≤m≤50000 ±1.0e 50000<m≤200000 ±1.5e m>200000 |
Send your sample type and method, and we will confirm the configuration and current lead time.
Ask about this modelModel comparison
ST Series Balance range at a glance
Full specifications for every model in the series, side by side. Tell us the sample type and throughput you need and we will point to the closest configuration.
| Model | Maximum Capacity | Calibration | Readability | Stabilization Time | Maximum permissible error | Pan Size |
|---|---|---|---|---|---|---|
| ST104 | 100g | External | e=1mg d=0.1mg | Optional in 2S or 4S | ±0.5e 0≤m≤50000 ±1.0e 50000<m≤200000 ±1.5e m>200000 | Φ80mm |
| ST124 | 120g | External | e=1mg d=0.1mg | Optional in 2S or 4S | ±0.5e 0≤m≤50000 ±1.0e 50000<m≤200000 ±1.5e m>200000 | Φ80mm |
| ST204 | 200g | External | e=1mg d=0.1mg | Optional in 2S or 4S | ±0.5e 0≤m≤50000 ±1.0e 50000<m≤200000 ±1.5e m>200000 | Φ80mm |
| ST224 | 220g | External | e=1mg d=0.1mg | Optional in 2S or 4S | ±0.5e 0≤m≤50000 ±1.0e 50000<m≤200000 ±1.5e m>200000 | Φ80mm |
| ST304 | 300g | External | e=1mg d=0.1mg | Optional in 2S or 4S | ±0.5e 0≤m≤50000 ±1.0e 50000<m≤200000 ±1.5e m>200000 | Φ80mm |
| ST104C | 100g | Internal | e=1mg d=0.1mg | Optional in 2S or 4S | ±0.5e 0≤m≤50000 ±1.0e 50000<m≤200000 ±1.5e m>200000 | Φ80mm |
| ST124C | 120g | Internal | e=1mg d=0.1mg | Optional in 2S or 4S | ±0.5e 0≤m≤50000 ±1.0e 50000<m≤200000 ±1.5e m>200000 | Φ80mm |
| ST204C | 200g | Internal | e=1mg d=0.1mg | Optional in 2S or 4S | ±0.5e 0≤m≤50000 ±1.0e 50000<m≤200000 ±1.5e m>200000 | Φ80mm |
| ST224C | 220g | Internal | e=1mg d=0.1mg | Optional in 2S or 4S | ±0.5e 0≤m≤50000 ±1.0e 50000<m≤200000 ±1.5e m>200000 | Φ80mm |
| ST304C | 300g | Internal | e=1mg d=0.1mg | Optional in 2S or 4S | ±0.5e 0≤m≤50000 ±1.0e 50000<m≤200000 ±1.5e m>200000 | Φ80mm |
Shaded labels mark the specifications that differ between models.
Overview
What this instrument is designed to do, in plain terms.
The ST Series Balance covers 10 models, ST104 to ST304C. The comparison table lists the values that differ across the range.
- Equipped with an advanced 6.8-inch full-color LCD touchscreen, adopting a separate design for the display screen and the main unit.
- Adopts an advanced electromagnetic force balance sensor to achieve ultra-high weighing precision, capable of sensitively detecting tiny mass changes. Meanwhile, it features excellent linearity and repeatability, effectively reducing measurement errors and ensuring accurate and reliable weighing results every time.
- Equipped with a fast and stable weighing mechanism, it relies on high-performance digital signal processing algorithms and a high-speed weighing system to quickly complete balance calculations. The built-in intelligent compensation system can effectively resist environmental disturbances such as vibration and air currents, obtain stable readings rapidly, and greatly improve work efficiency.
- Built-in multiple weighing modes and functions: weighing, piece counting, percentage weighing, check weighing, animal weighing, density weighing, zero tracking; supports various weighing units (g, kg, mg, oz, ozt, gr, ct, lb, q, dwt, lt, dr, N) and other accessory functions.
- Features adjustable resolution, allowing flexible setting of appropriate resolution according to different test samples. Two stability time options of 2s/4s are available, weighing data can be automatically saved periodically, and a sample weight change curve can be generated automatically.
- All instruments can be centrally monitored, uniformly managed and dispatched globally and integrally through the IoT platform.
- 21 CFR compliant software is optional.
Accessaries
Confirm these items before the final quotation. Accessaries are listed only where the manufacturer offers them.
Standard Accessaries
- Calibration Weight (for external calibration balance)
- Adapter
- Manual
- Dust cover
Optional Accessaries
- 21 CFR compliant software
