P7 Series

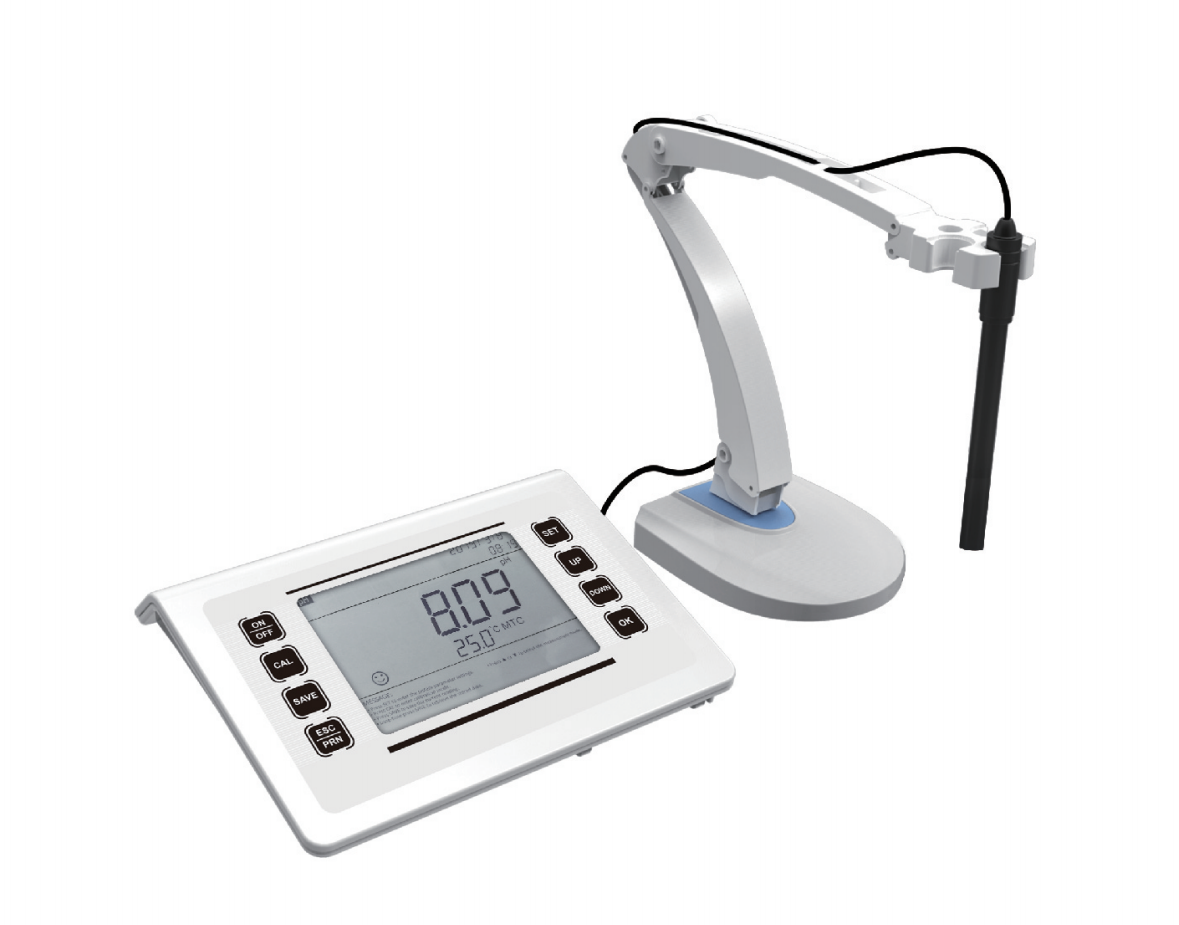

P711H pH Meter

Name: P711H pH Meter
Brand: YOKON
SKU: P711H

Documentation

Datasheets and manuals are issued per model and revision. Ask for the documents that match the configuration you are considering.

Model P711H Category pH Meter In production

5-inch LCD screen with concise and friendly-use interface.
Built-in microprocessor chip has intelligent functions such as automatic calibration, ATC, data storage, clock display, USB output, function settings, wireless printing, and self-diagnosis information, etc.
Automatic recognition of 25 buffers with three kinds of options: Europe & USA, NIST and China.
Wireless bluetooth printing and real-time data transfer to mobile phone are optional.
Smart electrode status display to ensure accurate use.
Omron long lasting and light touch key can be used more than 100, 000 times.
Can store 1000 sets of test data, which can be saved, transferred to a USB memory stick, and opened in Excel.

P711H core specifications
pH — Measuring range	(-2.00 ~ 20.00)pH
pH — Resolution	0.01/0.001 pH
pH — Accuracy	±0.002pH
pH — Auto calibration	1, 2, 3 point
pH — Buffer	Europe & USA, NIST, China standards
pH — Input current	≤2×10-12 A
pH — Input impedance	≥1×1012 Ω
pH — Stability	±0.01 pH/3h
pH — Temp. compensation	(0 ~ 100)℃, auto or manual
mV ORP — Measuring range	-1999.9mV ~ 0 ~ 1999.9mV
mV ORP — Resolution	0.1 mV
mV ORP — Accuracy	±0.03% FS
Temp — Measuring range	(0 ~ 100)℃
Temp — Resolution	0.1℃
Temp — Accuracy	±0.5℃
Other — Display	6.5-inch LCD screen
Other — Data storage	1000 sets
Other — Power	DC 12V/1A
Other — Output	USB
Other — Ambient Temp.	5 ~ 40 ℃
Other — Ambient Humidity	≤85%
Other — IP grade	IP54
Other — Dimensions/N. W.	215×170×37mm/600g
Other — Shipping Size/G. W.	470x430x72mm/3kg

Send your sample type and method, and we will confirm the configuration and current lead time.

sales@yoke-fac.com

Overview

What this instrument is designed to do, in plain terms.

P711H is a ph meter for ph meter measurement.

5-inch LCD screen with concise and friendly-use interface.
Built-in microprocessor chip has intelligent functions such as automatic calibration, ATC, data storage, clock display, USB output, function settings, wireless printing, and self-diagnosis information, etc.
Automatic recognition of 25 buffers with three kinds of options: Europe & USA, NIST and China.
Wireless bluetooth printing and real-time data transfer to mobile phone are optional.
Smart electrode status display to ensure accurate use.
Omron long lasting and light touch key can be used more than 100, 000 times.
Can store 1000 sets of test data, which can be saved, transferred to a USB memory stick, and opened in Excel.

Confirm these items before the final quotation. Accessaries are listed only where the manufacturer offers them.

No Optional Accessaries are published for this model. Confirm availability with our team.

Specifications can depend on the selected configuration. Confirm the current datasheet, accessories and software version before purchase.

No public documents are linked to this model yet.

Let’s talk about your application

Share your sample, measurement requirements and preferred configuration.
