8 models

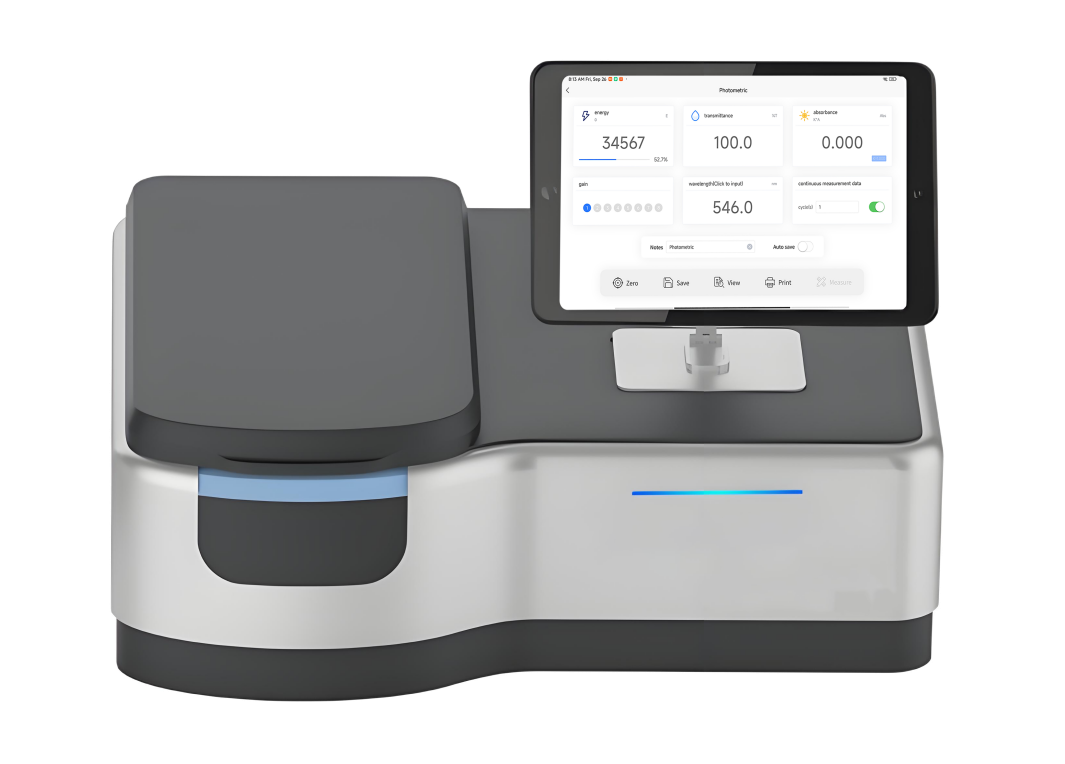

M Series Spectrophotometer
Eight spectrophotometers from M300 to M601S covering 190-1100 nm with plus or minus 0. 1 nm wavelength accuracy, photometric, quantitative and kinetics modes.
Documentation
Datasheets and manuals are issued per model and revision. Ask for the documents that match the configuration you are considering.
See linked documents| Wavelength Accuracy | ±0.1nm@656.1nm, ±0.3nm@all |
|---|---|
| Wavelength Repeatability | ≤0.1nm |
| Photometric Accuracy | ±0.2%T(0~100%T), ±0.0005A(0-0.5A), ±0.0008A(0.5-1A) |
Send your sample type and method, and we will confirm the configuration and current lead time.
Ask about this modelModel comparison
M Series Spectrophotometer range at a glance
Full specifications for every model in the series, side by side. Tell us the sample type and throughput you need and we will point to the closest configuration.
| Parameter | M300 | M500 | M501 | M501S | M400 | M600 | M601 | M601S |
|---|---|---|---|---|---|---|---|---|
| Optical System | Single Beam, Grating 1200 lines/mm | Single Beam, Grating 1200 lines/mm | Single Beam, Grating 1200 lines/mm | Single Beam, Grating 1200 lines/mm | Split Beam, Grating 1200 lines/mm | Double Beam, Grating 1200 lines/mm | Double Beam, Grating 1200 lines/mm | Double Beam, Grating 1200 lines/mm |
| Wavelength Range | 320-1100 nm | 190-1100 nm | 190-1100 nm | 190-1100 nm | 190-1100 nm | 190-1100 nm | 190-1100 nm | 190-1100 nm |
| Spectral Bandwidth | 2nm | 2nm | 1nm | 0.5/1/2/4/5nm | 2nm | 2nm | 1nm | 0.5/1/2/4/5nm |
| Wavelength Accuracy | ±0.1nm@656.1nm, ±0.3nm@all | ±0.1nm@656.1nm, ±0.3nm@all | ±0.1nm@656.1nm, ±0.3nm@all | ±0.1nm@656.1nm, ±0.3nm@all | ±0.1nm@656.1nm, ±0.3nm@all | ±0.1nm@656.1nm, ±0.3nm@all | ±0.1nm@656.1nm, ±0.3nm@all | ±0.1nm@656.1nm, ±0.3nm@all |
| Wavelength Repeatability | ≤0.1nm | ≤0.1nm | ≤0.1nm | ≤0.1nm | ≤0.1nm | ≤0.1nm | ≤0.1nm | ≤0.1nm |
| Photometric Accuracy | ±0.2%T(0~100%T), ±0.0005A(0-0.5A), ±0.0008A(0.5-1A) | ±0.2%T(0~100%T), ±0.0005A(0-0.5A), ±0.0008A(0.5-1A) | ±0.2%T(0~100%T), ±0.0005A(0-0.5A), ±0.0008A(0.5-1A) | ±0.2%T(0~100%T), ±0.0005A(0-0.5A), ±0.0008A(0.5-1A) | ±0.2%T(0~100%T), ±0.0005A(0-0.5A), ±0.0008A(0.5-1A) | ±0.2%T(0~100%T), ±0.0005A(0-0.5A), ±0.0008A(0.5-1A) | ±0.2%T(0~100%T), ±0.0005A(0-0.5A), ±0.0008A(0.5-1A) | ±0.2%T(0~100%T), ±0.0005A(0-0.5A), ±0.0008A(0.5-1A) |
| Photometric Repeatability | ≤0.15%T (0-100%T), 0.0004A(0-0.5A), 0.0006A(0.5-1A) | ≤0.15%T (0-100%T), 0.0004A(0-0.5A), 0.0006A(0.5-1A) | ≤0.15%T (0-100%T), 0.0004A(0-0.5A), 0.0006A(0.5-1A) | ≤0.15%T (0-100%T), 0.0004A(0-0.5A), 0.0006A(0.5-1A) | ≤0.15%T (0-100%T), 0.0004A(0-0.5A), 0.0006A(0.5-1A) | ≤0.15%T (0-100%T), 0.0004A(0-0.5A), 0.0006A(0.5-1A) | ≤0.15%T (0-100%T), 0.0004A(0-0.5A), 0.0006A(0.5-1A) | ≤0.15%T (0-100%T), 0.0004A(0-0.5A), 0.0006A(0.5-1A) |
| Photometric Range | 0-400%T, -4~4A | 0-400%T, -4~4A | 0-400%T, -4~4A | 0-400%T, -4~4A | 0-400%T, -4~4A | 0-400%T, -4~4A | 0-400%T, -4~4A | 0-400%T, -4~4A |
| Resolution | 0.00001Abs | 0.00001Abs | 0.00001Abs | 0.00001Abs | 0.00001Abs | 0.00001Abs | 0.00001Abs | 0.00001Abs |
| Stray Light | ≤0.03%T@220nm, 360nm | ≤0.03%T@220nm, 360nm | ≤0.03%T@220nm, 360nm | ≤0.03%T@220nm, 360nm | ≤0.03%T@220nm, 360nm | ≤0.03%T@220nm, 360nm | ≤0.03%T@220nm, 360nm | ≤0.03%T@220nm, 360nm |
| Stability | ±0.0001A | ±0.0001A | ±0.0001A | ±0.0001A | ±0.0001A | ±0.0001A | ±0.0001A | ±0.0001A |
| Baseline Flatness | ±0.0004A | ±0.0004A | ±0.0004A | ±0.0004A | ±0.0004A | ±0.0004A | ±0.0004A | ±0.0004A |
| Noise | 0.0005A@500nm | 0.0005A@500nm | 0.0005A@500nm | 0.0005A@500nm | 0.0005A@500nm | 0.0005A@500nm | 0.0005A@500nm | 0.0005A@500nm |
| Work Mode | T, A, C, E | T, A, C, E | T, A, C, E | T, A, C, E | T, A, C, E | T, A, C, E | T, A, C, E | T, A, C, E |
| Scanning Speed | Hi, Med, Low (Max. 8000nm/min) | Hi, Med, Low (Max. 8000nm/min) | Hi, Med, Low (Max. 8000nm/min) | Hi, Med, Low (Max. 8000nm/min) | Hi, Med, Low (Max. 8000nm/min) | Hi, Med, Low (Max. 8000nm/min) | Hi, Med, Low (Max. 8000nm/min) | Hi, Med, Low (Max. 8000nm/min) |
| Display | 11-inch Touch Screen | 11-inch Touch Screen | 11-inch Touch Screen | 11-inch Touch Screen | 11-inch Touch Screen | 11-inch Touch Screen | 11-inch Touch Screen | 11-inch Touch Screen |
| Light Source | Tungsten Lamp | Deuterium & Tungsten Lamp | Deuterium & Tungsten Lamp | Deuterium & Tungsten Lamp | Deuterium & Tungsten Lamp | Deuterium & Tungsten Lamp | Deuterium & Tungsten Lamp | Deuterium & Tungsten Lamp |
| Detector | Silicon Photodiode | Silicon Photodiode | Silicon Photodiode | Silicon Photodiode | Silicon Photodiode | Silicon Photodiode | Silicon Photodiode | Silicon Photodiode |
| Cuvette Holder | 10mm manual 4-cell holder | 10mm manual 4-cell holder | 10mm manual 4-cell holder | 10mm manual 4-cell holder | 10mm manual 4-cell holder | 10mm single hole cell holder | 10mm single hole cell holder | 10mm single hole cell holder |
| Output | Cloud connectivity/Email/SMS/Bluetooth/WiFi | Cloud connectivity/Email/SMS/Bluetooth/WiFi | Cloud connectivity/Email/SMS/Bluetooth/WiFi | Cloud connectivity/Email/SMS/Bluetooth/WiFi | Cloud connectivity/Email/SMS/Bluetooth/WiFi | Cloud connectivity/Email/SMS/Bluetooth/WiFi | Cloud connectivity/Email/SMS/Bluetooth/WiFi | Cloud connectivity/Email/SMS/Bluetooth/WiFi |
| Power | AC 110-220V 50-60Hz | AC 110-220V 50-60Hz | AC 110-220V 50-60Hz | AC 110-220V 50-60Hz | AC 110-220V 50-60Hz | AC 110-220V 50-60Hz | AC 110-220V 50-60Hz | AC 110-220V 50-60Hz |
Shaded labels mark the specifications that differ between models.
Overview
What this instrument is designed to do, in plain terms.
The M Series Spectrophotometer covers 8 models, M300 to M601S. The comparison table lists the values that differ across the range.
- 11-inch Touch Screen
- Functions include Photometric measurement, Quantitative measurement, Kinetics, Spectrum scan, DNA/Protein test, Multi-wavelength test, etc.
- Equipped with GLP/GMP functions, including user management, audit tracking, log inquiry, etc.
- Support real-time sending of data via email and mobile SMS.
- Adopts 3. 0 Bluetooth protocol, with stable transmission and free interconnection within 10 meters.
- Can be directly connected to laser printer via WiFi and thermal printer via Bluetooth.
- Extensive accessories are optional, such as auto 4-cell/5-cell/8-cell holder, film holder, tube rack, integrating sphere, reflection accessory, peltier/sipper system, 21 CFR compliant software, etc.
Accessaries
Confirm these items before the final quotation. Accessaries are listed only where the manufacturer offers them.
Standard Accessaries
- 10mm glass cuvette x 4
- 10mm quartz cuvette(UV) x 2
- Power cord
- User's Manual
Optional Accessaries
- auto 4-cell/5-cell/8-cell holder
- film holder
- tube rack
- integrating sphere
- reflection accessory
- peltier/sipper system
- 21 CFR compliant software
Specifications can depend on the selected configuration. Confirm the current datasheet, accessories and software version before purchase.
