IT Series

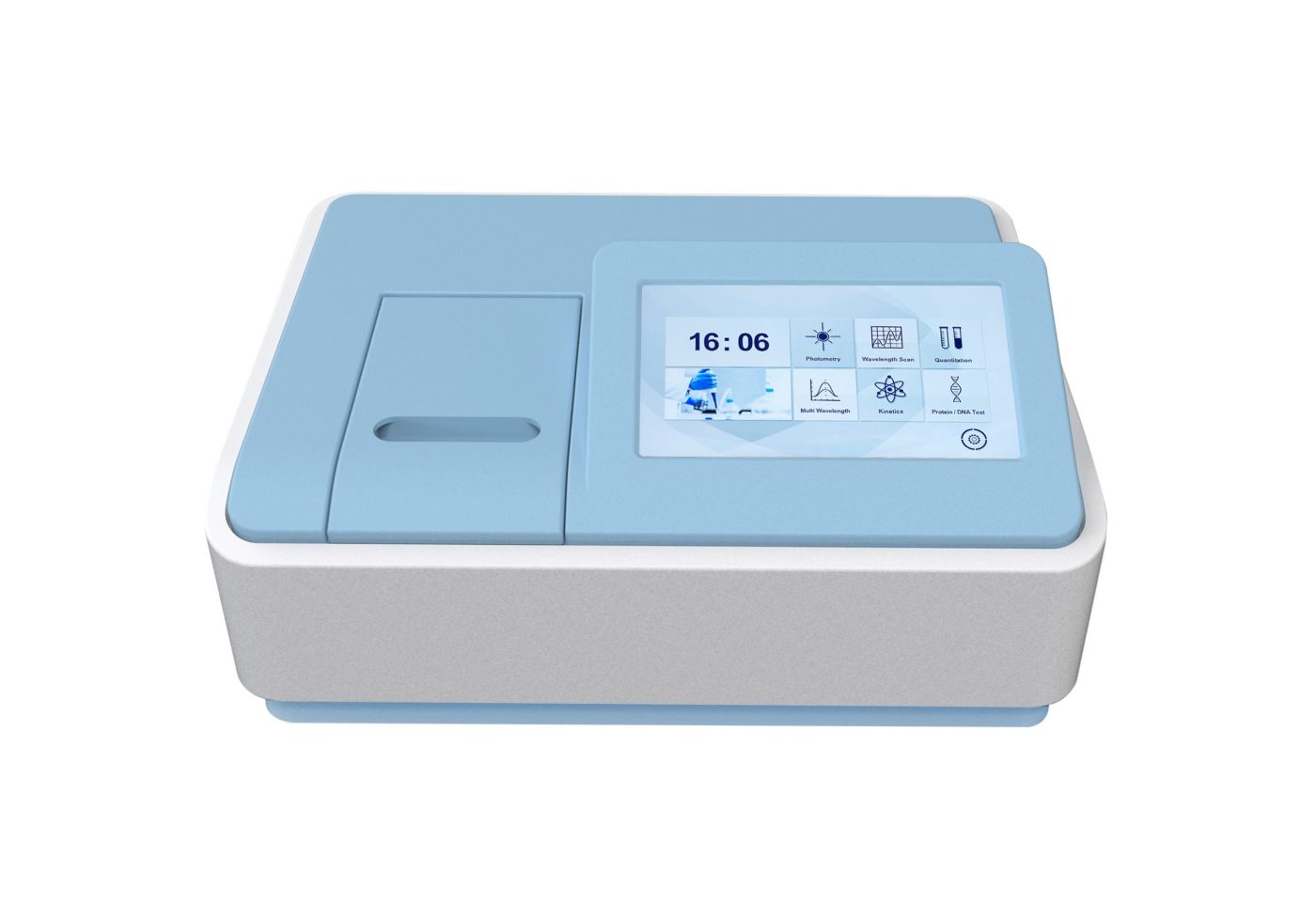

IT-600U Double Beam Spectrophotometer
1-inch touchscreen and windows graphic interface.
Documentation
Datasheets and manuals are issued per model and revision. Ask for the documents that match the configuration you are considering.
See linked documents| Optical System | Double Beam, Grating 1200 lines/mm |
|---|---|
| Wavelength Range | 190-1100 nm |
| Spectral Bandwidth | 1.8nm |
| Wavelength Accuracy | ±0.1nm@656.1nm, ±0.3nm@all |
| Wavelength Repeatability | <=0.1nm |
| Photometric Accuracy | 0.2%T(0~100%T), ±0.002A(0-0.5A), ±0.004A(0.5-1A) |
| Photometric Repeatability | ≤0.15%T (0-100%T), 0.001A(0-0.5A), 0.002A(0.5-1A) |
| Photometric Range | 0-200%T, -0.3~3A, 0-9999C (0-9999F) |
| Stray Light | <=0.03%T@220nm, 360nm |
| Stability | ±0.0003A/h @500 nm |
| Baseline Flatness | ±0.001A |
| Noise | 0.0005A@500nm |
| Work Mode | T, A, C, E |
| Scanning Speed | Hi, Med, Low (Max. 3000nm/min) |
| Wavelength Setting | Auto |
| Display | 10.1-inch Touch Screen |
| Light Source | Deuterium &Tungsten lamp |
| Detector | Silicon Photodiode |
| Cuvette Holder | 10mm single hole cell holder |
| Output | USB drive, USB host, RS232 |
| Power | AC 220V/50Hz or AC 110V/60Hz |
Send your sample type and method, and we will confirm the configuration and current lead time.
Ask about this modelOverview
What this instrument is designed to do, in plain terms.
- 10.1-inch touchscreen with a Windows graphical interface.
- Functions include Photometric measurement, Quantitative measurement, Kinetics, Spectrum scan, DNA/Protein test, multi-wavelength test, etc.
- In-house massive memory is capable of saving up to 1024M for test data & working curves.
- Supports USB storage. The USB port can be used for data transfer and exporting to Excel for further processing, analysis and storage.
- Socket-type deuterium and tungsten lamps support lamp switching without optical realignment, and the lamps are easy to replace.
- Extensive accessories are optional, such as film holder, integrating sphere, peltier/sipper system, 21 CFR compliant software, built-in thermal printer, PC software etc.
Accessaries
Confirm these items before the final quotation. Accessaries are listed only where the manufacturer offers them.
Standard Accessaries
- 10mm glass cuvette x 4
- 10mm quartz cuvette x 2
- Power cord
- User's Manual
Optional Accessaries
- film holder
- integrating sphere
- peltier/sipper system
- 21 CFR compliant software
- built-in thermal printer
- PC software
Specifications can depend on the selected configuration. Confirm the current datasheet, accessories and software version before purchase.
